JIS Series-Dry Charged

ADA POWER Dry-charged auto batteries must be filled with electrolyte or “activated” and then boosted before being placed in service and the battery’s plates are pre-charged so they become activated after the electrolyte is added.
Online Inquiry
Click Refresh Verification Code

Product Details

a. Features

ADA  POWER Dry-charged auto batteries must be filled with electrolyte or “activated” and then boosted before being placed in service and the battery’s plates are pre-charged so they become activated after the electrolyte is added; the advantage of dry-charged batteries is long, indefinite shelf life before electrolyte is added.


>>>>>Advanced Features:

1. Composite Separator

Ultra-fine glass fiber composite separator, with light weight, small resistance, high acidity absorption and strong ion migration ability in the sulfuric acid solution, improves its battery voltage and starting current to the maximum, thus keeping the battery capacity in a good state all long.

2. Comparison of Service Life between General Separator and Composite Separator

Ultra-fine glass fiber composite separator, with the fiber diameter of 2-3um, is arranged disorderly in a network structure. The strong adsorption and breakover capabilities of the battery electrolyte can effectively condensate active substances and prevent them from dropping off, thus extending the battery life.

3. Battery Life

The adoption of Sb-free Pb-Sn-Ca special alloying technology effectively guarantees the contents of lead dioxide and spongy lead in the positive and negative plates. The battery can be put into use directly after adding liquid, no need to be charged. Its super-charged performance distinguishes the product from others.

4. Excellent Performance Chart of Pb-Ca Alloy
The accumulate plate made of high-purity Pb-Ca alloy has extraordinary oxidation and corrosion resistance capabilities. The adverse effect brought about by hydrogen evolution of general Sb alloy plate is avoided; the water loss of the accumulator slowed down, and the cycle index improved.

5. Comparison of Self-discharge between General Accumulator and Pb-Sb-Ca Alloy Accumulator

The Pb-Sb-Ca alloy grid offers more excellent characteristics of oxidation resistance, corrosion resistance and less water loss than the general Sb alloy grid, which can minimize the self-discharge and maintain its good starting performance even after long-term storage.

b. Application

• Applicable for automotive, tractor, startup of mining and construction vehicle, lighting and ignition.
• Applicable for startup and ignition of all gasoline and diesel engine.
• Applicable for power supply of the electric equipment on automotive, tractor, mining and construction vehicle.

c. Technical Specification

PART JIS Type Type Voltage Capacity CCA Size（mm) Terminal
NO. GR.NO. (New) (Old) (V) 20hr(Ah) 5hr (Ah) min (-18℃) L W H T.H. Lay-out Type
AP097 B20 36B20LS NS40ZLS 12 35 28 52 320 196 128 200 220 0 A
AP098 36B20RS NS40ZS 12 35 28 52 320 196 128 200 220 1 A
AP099 36B20L NS40ZL 12 35 28 52 320 196 128 200 220 0 B
AP100 36B20R NS40Z 12 35 28 52 320 196 128 200 220 1 B
AP101 B24 32C24L N40L 12 40 32 57 350 237 127 200 220 0 A
AP102 32C24R N40 12 40 32 57 350 237 127 200 220 1 A
AP103 46B24LS NS60LS 12 45 36 71 350 237 127 200 220 0 A
AP104 46B24RS NS60S 12 45 36 71 350 237 127 200 220 1 A
AP105 46B24L NS60L 12 45 36 71 350 237 127 200 220 0 B
AP106 46B24R NS60 12 45 36 71 350 237 127 200 220 1 B
AP107 55B24LS 12 45 36 71 350 237 127 200 220 0 A
AP108 55B24RS 12 45 36 71 350 237 127 200 220 1 A
AP109 55B24L 12 45 36 71 350 237 127 200 220 0 B
AP110 55B24R 12 45 36 71 350 237 127 200 220 1 B
AP111 D23 55D23L 12 60 48 99 450 226 170 200 220 0 A
AP112 55D23R 12 60 48 99 450 226 170 200 220 1 A
AP113 75D23L 12 65 52 118 500 226 170 200 220 0 A
AP114 75D23R 12 65 52 118 500 226 170 200 220 1 A
AP115 D26 48D26R N50 12 50 40 78 400 260 170 200 225 1 A
AP116 48D26L N50L 12 50 40 78 400 260 170 200 225 0 A
AP117 55D26R N50Z 12 60 48 101 460 260 170 200 225 1 A
AP118 55D26L N50ZL 12 60 48 101 460 260 170 200 225 0 A
AP119 65D26R NS70 12 65 52 113 540 260 170 200 225 1 A
AP120 65D26L NS70L 12 65 52 113 540 260 170 200 225 0 A
AP121 D31 65D31R N70 12 70 56 126 460 305 172 200 225 1 A
AP122 65D31L N70L 12 70 56 126 460 305 172 200 225 0 A
AP123 75D31R N70Z 12 75 60 137 540 305 172 200 225 1 A
AP124 75D31L N70ZL 12 75 60 137 540 305 172 200 225 0 A
AP125 95D31R NX120-7 12 80 64 159 640 305 172 200 225 1 A
AP126 95D31L NX120-7L 12 80 64 159 640 305 172 200 225 0 A
AP127 E41 95E41R N100 12 100 80 182 700 405 172 205 228 1 A
AP128 95E41L N100L 12 100 80 182 700 405 172 205 228 0 A
AP129 105E41R N100Z 12 105 83 190 750 405 172 205 228 1 A
AP130 105E41L N100ZL 12 105 83 190 750 405 172 205 228 0 A
AP131 115E41R NS120 12 110 88 200 800 405 172 205 228 1 A
AP132 115E41L NS120L 12 110 88 200 800 405 172 205 228 0 A
AP133 F51 115F51 N120 12 120 96 225 840 505 180 210 235 4 A
AP134 145F51 NS150 12 140 112 269 900 505 180 210 235 4 A
AP135 G51 145G51 N150 12 150 120 292 950 505 220 210 235 4 A
AP136 165G51 NS200 12 170 136 338 1050 505 220 210 235 3 A
AP137 H52 190H52 N200 12 200 160 409 1100 505 265 210 235 4 A
Note:
1. Specifications above are subject to change withour further notice, please contact us for kind check.
2. Some more models may not be listed, please contact our salesperson for more.
3. if more details required, please feel free to mail, call or chat via online mobile/whatsapp/wechat

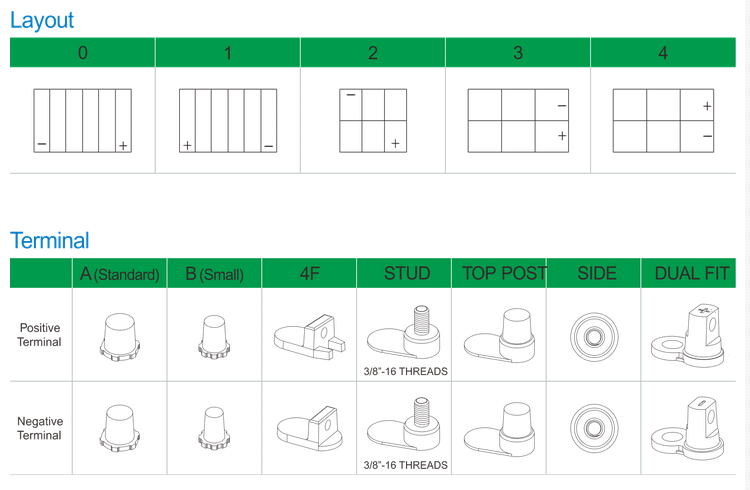

d. Terminal&Layout
