a. Features

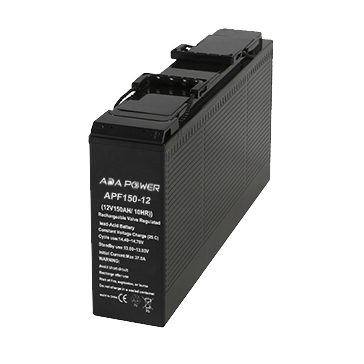

ADA  POWER AF (Front Terminal) Series is especially designed for telecommunication use with 10+ years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life and Front Access connection for fast & easy installation and maintenance and highly suited for telecom applications, UPS systems and other back up applications.

Battery Type : Front Terminal Series

Design cycle life : 700cycles

Volate: 12V

Capacity: 55-200ah

Applications: telecommunication ,UPS, Solar power

>>>>>Advanced Features

• 12 years design life at floating condition

• Wide operating temperature range from -15°C to 55°C

• Advanced paste formula with increased recharge efficiency

• Front access terminal with standard width for 19” and 23” ETSI racks

• 30% decreased float current lead to excellent high temperature resistance

• Thick flat plate with high Tin low Calcium alloy

• Low self-discharge rate

• Excellent deep discharge recovery capability

-Low self-discharge rate

-Excellent deep discharge recovery capability

b. Application

• 19" and 23" standard power cabinet

• communication system, microwave station, mobile base station, data center, radio / broadcasting station

• Power system of special network or local area network

• Emergency lighting and signal system

• UPS, Standby power, etc

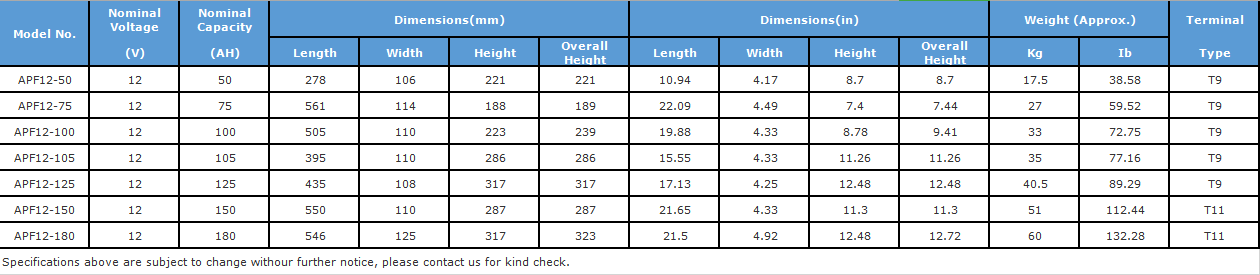

c. Technical Specification
