General Purpose Batteries

1. Voltage : 6V, 12V
2. Capacity: From 7.2Ah to 250Ah
3. Service life: 22Ah and below: 4～6 years; 24Ah and up: 6～8
Online Inquiry
Click Refresh Verification Code

Product Details

a. Features

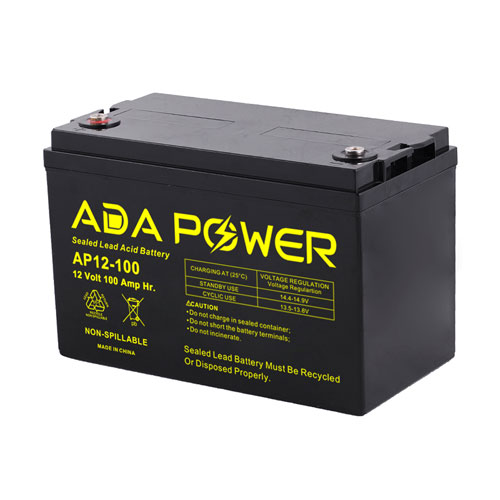

ADA POWER AP Series Valve Regulated Lead Acid batteries:

1. Voltage : 6V, 12V

2. Capacity: From 7.2Ah to 250Ah

3. Service life: 22Ah and below: 4～6 years; 24Ah and up: 6～8 years

>>>>>Advanced Feature

• Special lead calcium alloy, good corrosion resistance and high recovery capacity.

•Sealed and maintenance free, no need to add water

• Non-Spillable construction design

• Safety valve installation for explosion proof.

• Low Self Discharge, the self discharge rate is below 3% per month

•Flexibility design for multiple install positions

•The operating ambient temperature -40℃ to +65℃

•Pb-Ca-Sn alloy for plate grids: less gassing and less self-discharging

•High quality AGM separator: extend cycle life and prevents micro short circuit

•ABS material: increases the strength of battery container. (Flame-retardant ABS is optional)

•High purity raw material: ensures low self discharge rate

•Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity

b. Application

• Fire & security systems;

• Emergency power System

• Engine starting, Communication equipment;
• Cable equipment
• Uninterruptible power supplies;
• Telecommunication systems;
• Electronic cash registers;
• Electronic test equipment;
• processor based office machines;
• Control system;
• Electric powered bicycle & wheelchairs;
• Geophysical equipment;
• Marine equipment;
• Medical equipment;
• Portable cine & video lights;
• Solar powered systems;
• Television& video recorders;
• Vending machines;
• Alarm Systems, Computers;
• Power Tools;
• Emergency Lighting Systems;
• Toys;
• Geophysical Equipment;
• Vending Machines ;
• Other standby or primary power supplies

c. Technical Specification

Model No. Nominal Voltage Nominal Capacity Dimensions(mm) Dimensions(in) Weight  (Approx.) Terminal
(V) (AH) Length Width Height Overall  Height Length Width Height Overall Height Kg Ib
AP6-1.2 6 1.3 97 25 52 58 3.82 0.98 2.05 2.28 0.27 0.6 T1
AP6-2.8 6 2.8 66 33 97 104 2.6 1.3 3.82 4.09 0.55 1.21 T1
AP6-4 6 4 70 47 101 108 2.76 1.85 3.98 4.25 0.7 1.54 T1
AP6-4.5 6 4.5 70 47 101 107 2.76 1.85 3.98 4.21 0.76 1.68 T1
AP6-9 6 9 151 34 94 100 5.94 1.34 3.7 3.94 1.4 3.09 T1
AP6-10 6 10 151 50 94 100 5.94 1.97 3.7 3.94 1.45 3.2 T2
AP6-12 6 12 151 50 94 100 5.94 1.97 3.7 3.94 1.6 3.53 T2
AP12-1.3 12 1.3 98 43 52 58 3.86 1.69 2.05 2.28 0.5 1.1 T1
AP12-2.3 12 2.3 178 35 61 67 7.01 1.38 2.4 2.64 0.9 1.98 T1
AP12-4 12 4 90 70 101 107 3.54 2.76 3.98 4.21 1.42 3.13 T1
AP12-4.5 12 4.5 90 70 101 107 3.54 2.76 3.98 4.21 1.5 3.31 T1
AP12-7 12 7 151 65 94 100 5.94 2.56 3.7 3.94 2.15 4.74 T1
AP12-7.2 12 7.2 151 65 94 100 5.94 2.56 3.7 3.94 2.2 4.85 T1
AP12-7.5 12 7.5 151 65 94 100 5.94 2.56 3.7 3.94 2.3 5.07 T1
AP12-8.5 12 8.5 151 65 94 100 5.94 2.56 3.7 3.94 2.35 5.18 T1
AP12-9 12 9 151 65 94 101 5.94 2.56 3.7 3.98 2.4 5.29 T1
AP12-10 12 10 151 98 95 101 5.94 3.86 3.74 3.98 3.28 7.23 T2
AP12-12 12 12 151 98 95 101 5.94 3.86 3.74 3.98 3.6 7.94 T2
AP12-15 12 15 180 77 167 167 7.09 3.03 6.57 6.57 5 11.02 T3
AP12-17 12 17 180 77 167 167 7.09 3.03 6.57 6.57 5.3 11.68 T3
AP12-18 12 18 180 77 167 167 7.09 3.03 6.57 6.57 5.5 12.13 T8
AP12-20 12 20 180 77 167 167 7.09 3.03 6.57 6.57 5.8 12.79 T8
AP12-22 12 22 180 77 166 166 7.09 3.03 6.54 6.54 6.4 14.11 T8
AP12-24 12 24 166 175 125 125 6.54 6.89 4.92 4.92 8.2 18.08 T8
AP12-26 12 26 165 176 127 127 6.5 6.93 5 5 8.4 18.52 T3
AP12-28 12 28 165 175 125 125 6.5 6.89 4.92 4.92 9 19.84 T8
AP12-33 12 33 195 131 155 180 7.68 5.16 6.1 7.09 10.2 22.49 T7
AP12-35 12 35 195 131 155 180 7.68 5.16 6.1 7.09 10.8 23.81 T7
AP12-38 12 38 197 165 170 170 7.76 6.5 6.69 6.7 12.5 27.56 T4
AP12-40 12 40 197 165 170 170 7.76 6.5 6.69 6.7 13 28.66 T4
AP12-45 12 45 197 165 170 170 7.76 6.5 6.69 6.7 13.9 30.64 T4
AP12-50 12 50 230 138 208 211 9.06 5.43 8.19 8.31 16.5 36.38 T9
AP12-55 12 55 230 138 208 211 9.06 5.43 8.19 8.31 17.6 38.8 T9
AP12-60 12 60 260 168 211 214 10.24 6.61 8.31 8.43 20.6 45.42 T9
AP12-70 12 70 260 168 211 214 10.24 6.61 8.31 8.43 22.3 49.16 T9
AP12-75 12 75 260 168 211 214 10.24 6.61 8.31 8.43 23 50.71 T9
AP12-80P 12 80 260 168 211 214 10.24 6.61 8.31 8.43 23.5 51.81 T9
AP12-85 12 85 260 168 211 214 10.24 6.61 8.31 8.43 24 52.91 T9
AP12-65 12 65 350 167 179 179 13.78 6.57 7.05 7.05 22 48.5 T9
AP12-78 12 78 350 167 179 179 13.78 6.57 7.05 7.05 23 50.71 T9
AP12-80 12 80 350 167 179 179 13.78 6.57 7.05 7.05 24 52.91 T9
AP12-90 12 90 305 169 211 214 12.01 6.65 8.31 8.43 27 59.52 T9
AP12-95 12 95 306 169 211 214 12.05 6.65 8.31 8.43 28.5 62.83 T9
AP12-90P 12 90 330 171 214 220 12.99 6.73 8.43 8.66 27 59.52 T9
AP12-100S 12 100 330 171 214 220 12.99 6.73 8.43 8.66 28.5 63.33 T9
AP12-100 12 100 330 171 214 220 12.99 6.73 8.43 8.66 30 66.14 T9
AP12-120P 12 110 330 171 214 220 12.99 6.73 8.43 8.66 31 68.34 T9
AP12-110 12 110 281 267 207 210 11.06 10.51 8.15 8.27 31.5 69.45 T11
AP12-120 12 120 409 176 225 225 16.1 6.93 8.86 8.86 33 72.75 T11
AP12-134 12 134 341 172 280 285 13.43 6.77 11.02 11.2 41 90.39 T11
AP12-150 12 150 485 172 240 240 19.09 6.77 9.45 9.45 42 92.59 T11
AP12-180 12 180 494 206 209 235 19.45 8.11 8.23 9.25 55 121.25 T11
AP12-200 12 200 522 238 218 221 20.55 9.37 8.58 8.7 58 127.87 T11
AP12-250 12 250 521 269 220 223 20.51 10.59 8.66 8.78 68 149.91 T11
Specifications above are subject to change withour further notice, please contact us for kind check.

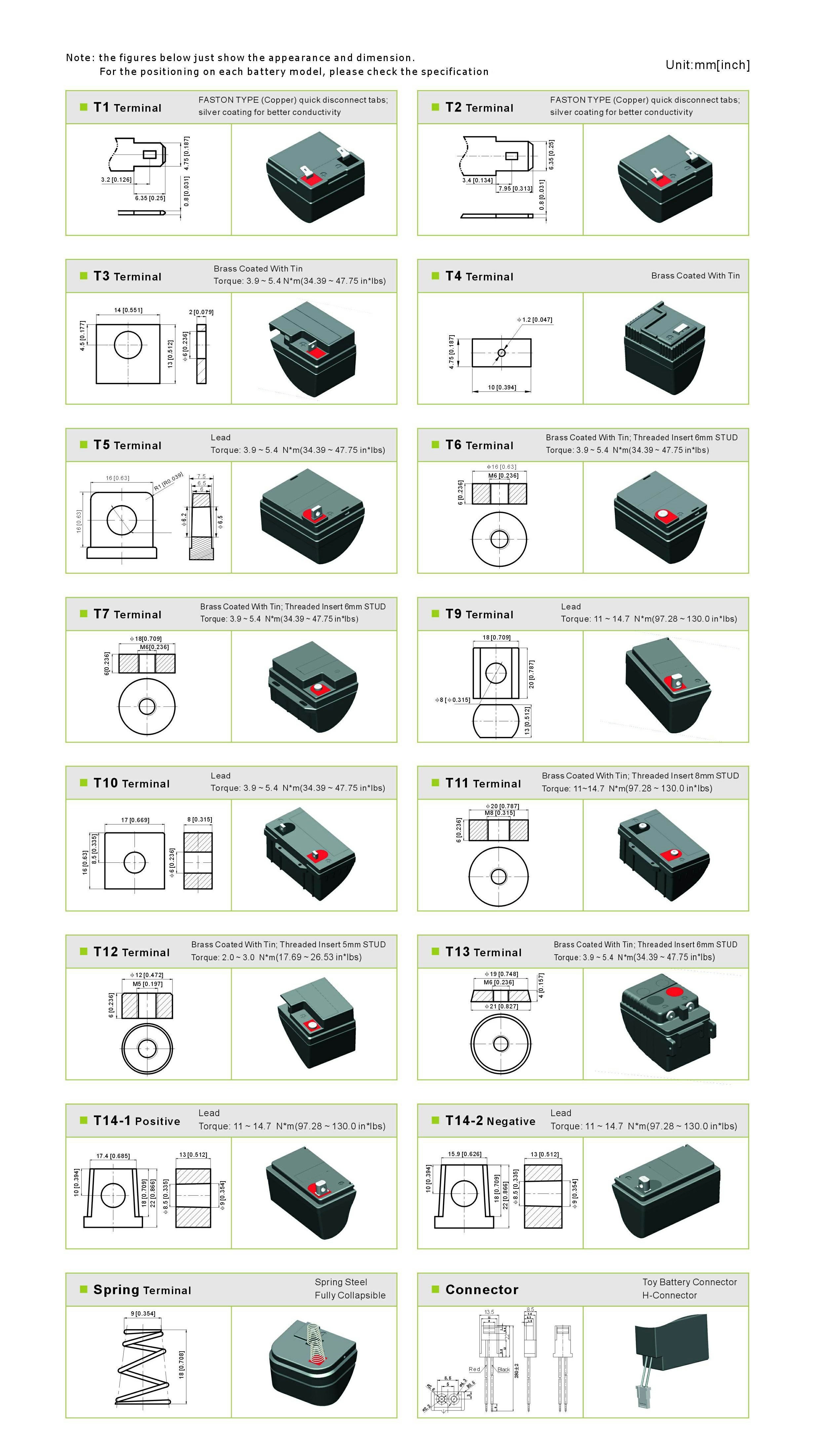

d. Terminal&Layout
